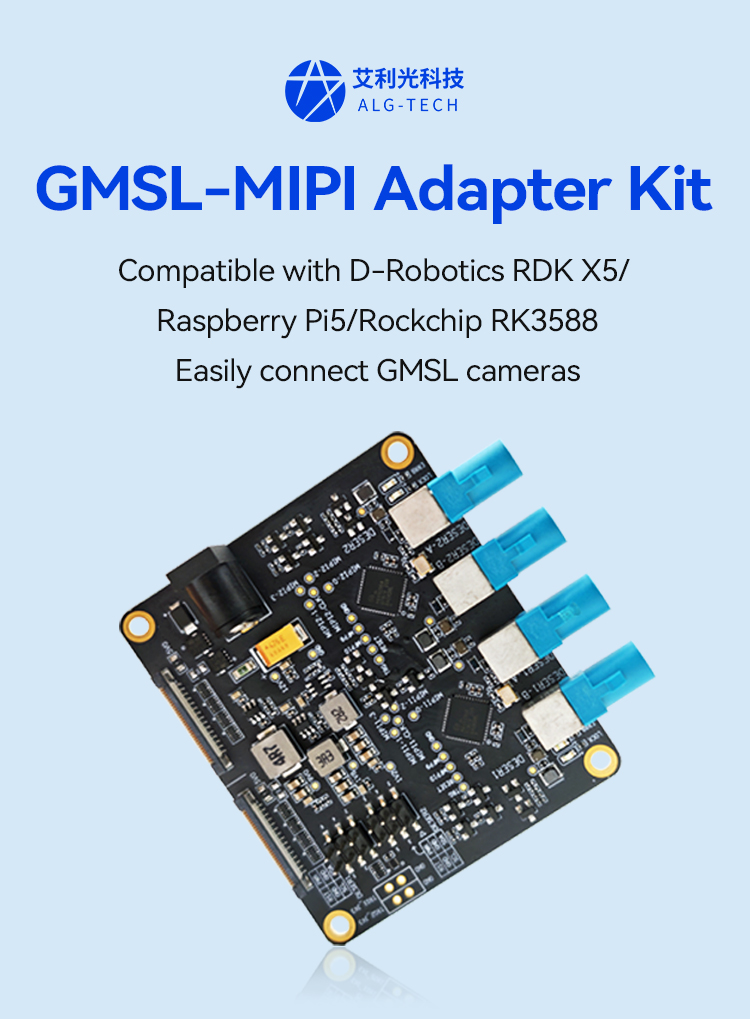

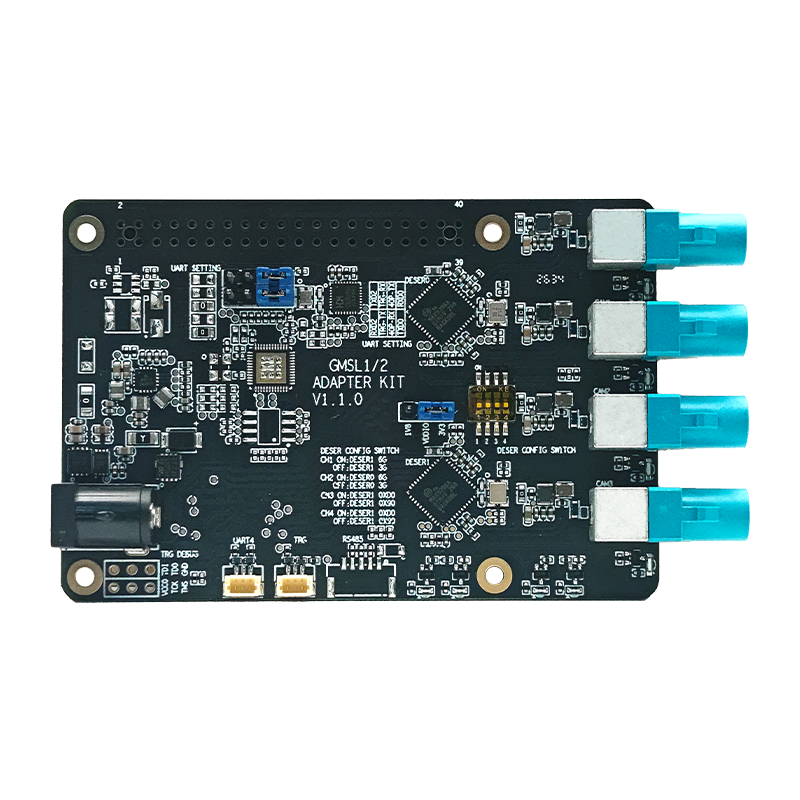

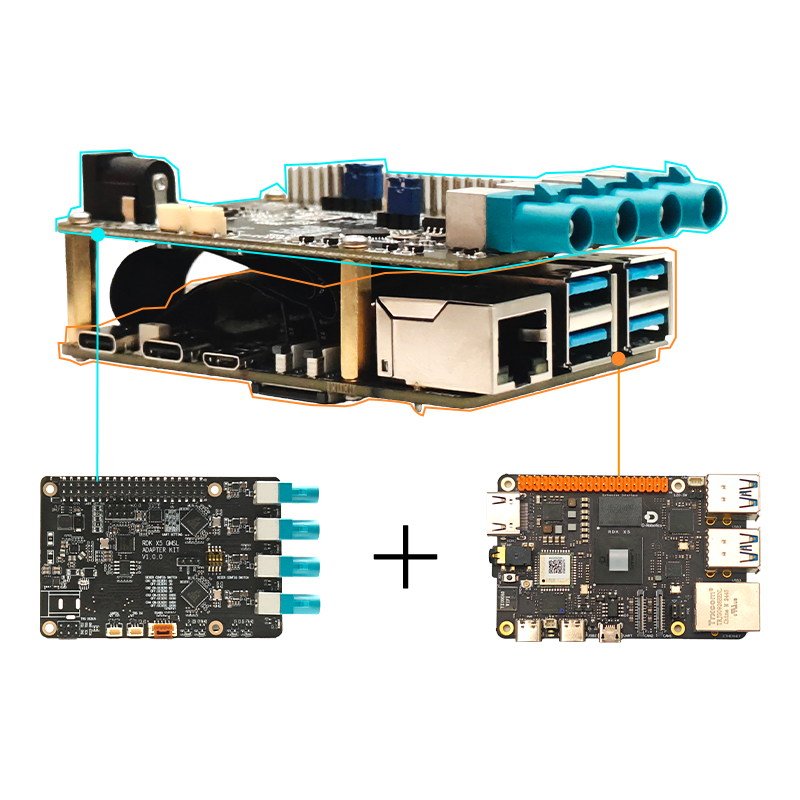

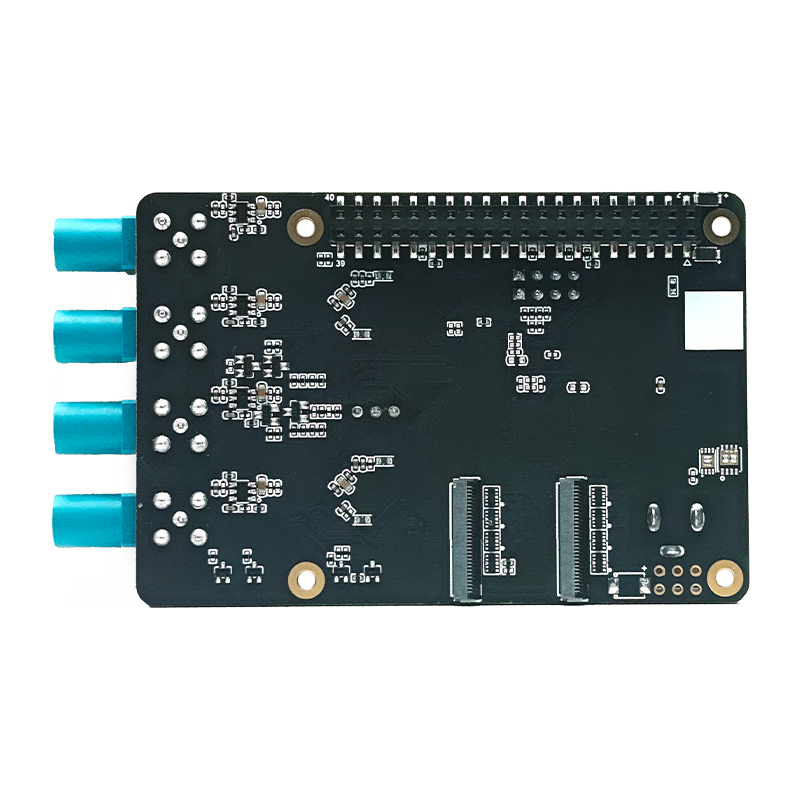

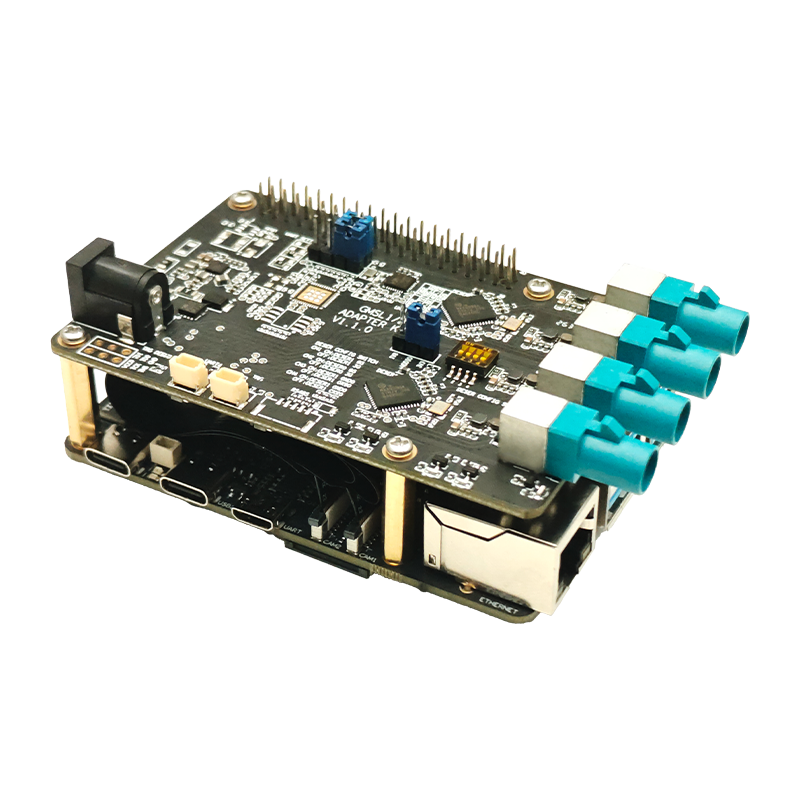

RDK X5 GMSL Adapter Kit

D-Robotics

Model: AKT1448-DX5-ZAI

Deserializer: Maxim MAX9296

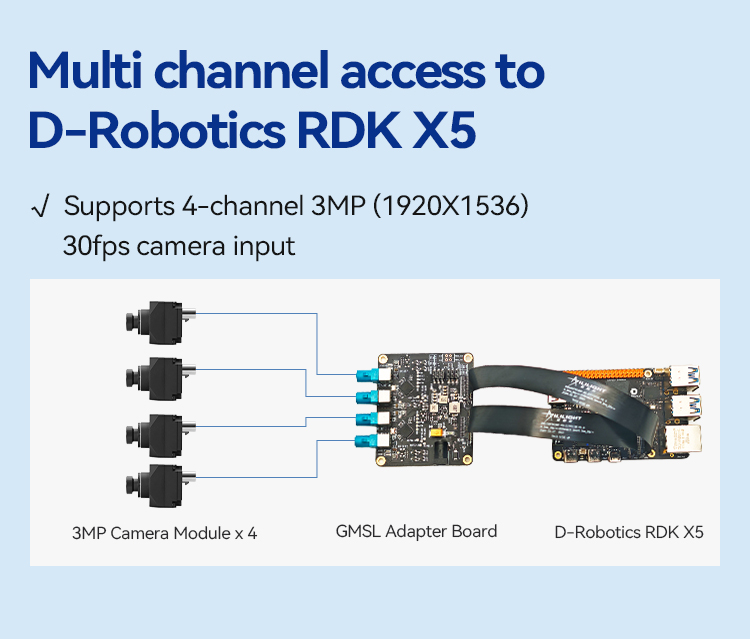

GMSL input channels: Maximum 4 routes

GMSL protocol: GMSL 1/2 (supports up to 6Gbps/channel)

Maximum transmission distance: About 15 meters (coaxial cable)

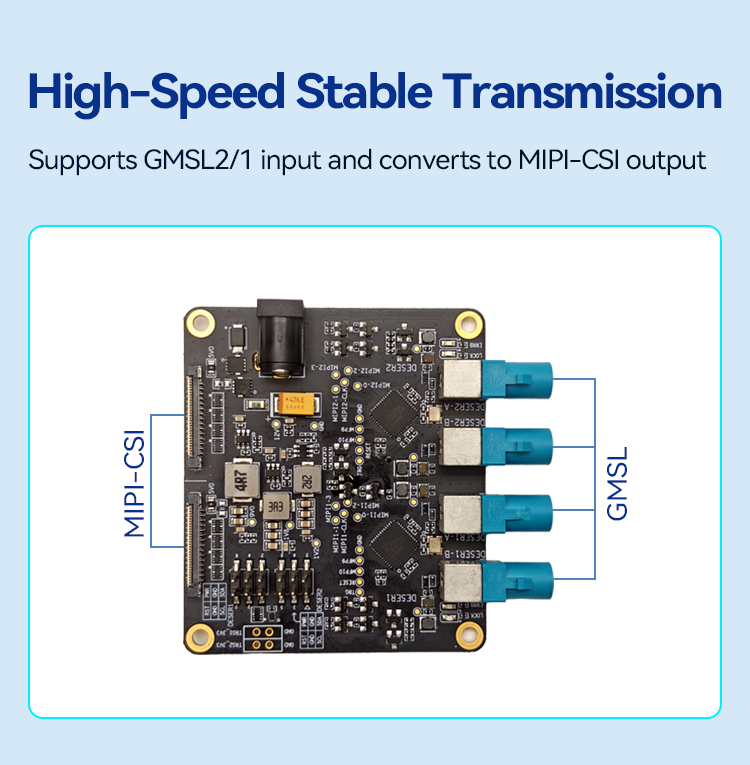

MIPI output interfaces: 2 routes

MIPI output interfaces: MIPI CSI-2 (through 22-pin FPC)

MIPI Lane number: Maximum 4-lane, maximum 6 Gbps/lane

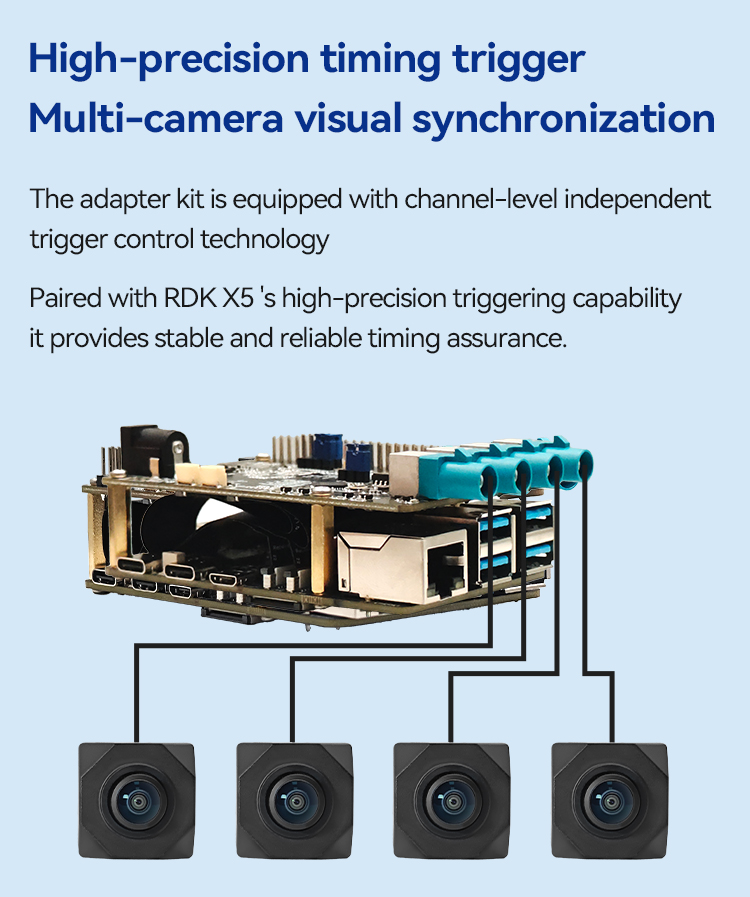

Independent trigger: Support

trigger mode: external trigger

Operating Temperature: -20°C~85°C

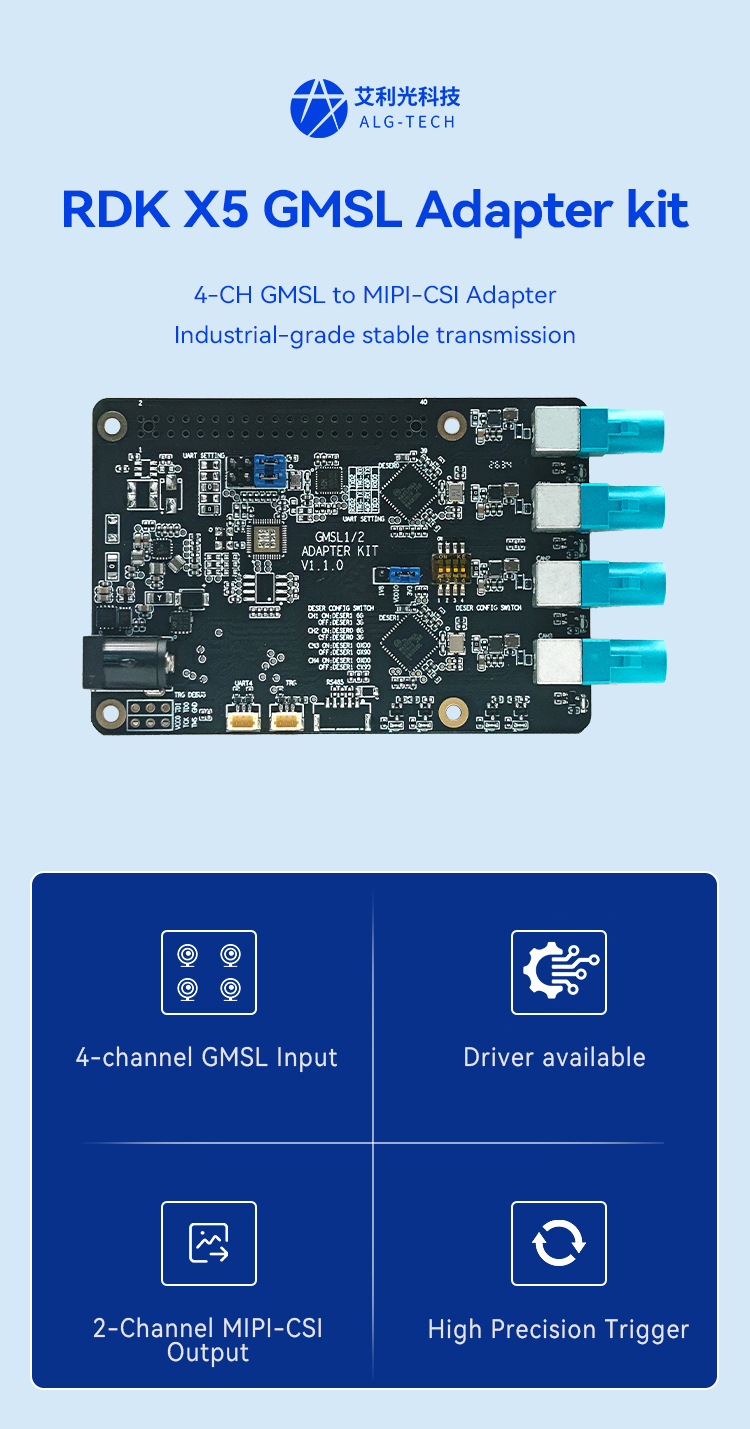

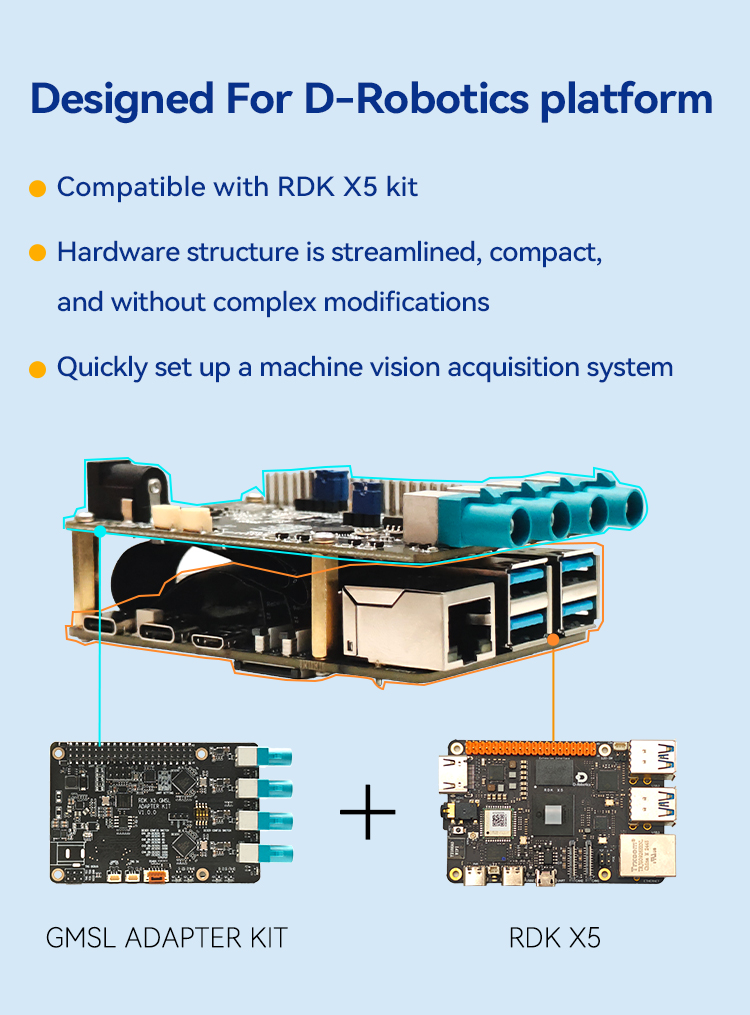

英文版x5套件详情_01.jpg 英文版x5套件详情_02.jpg 英文版x5套件详情_03.jpg 英文版x5套件详情_04.jpg

Title	Release Date	Published By	Download
Product Specifications\|RDK_X5_Adapter_Kit_Product_Sheet 2026-09-11 艾利光科技	2026-09-11	艾利光科技
