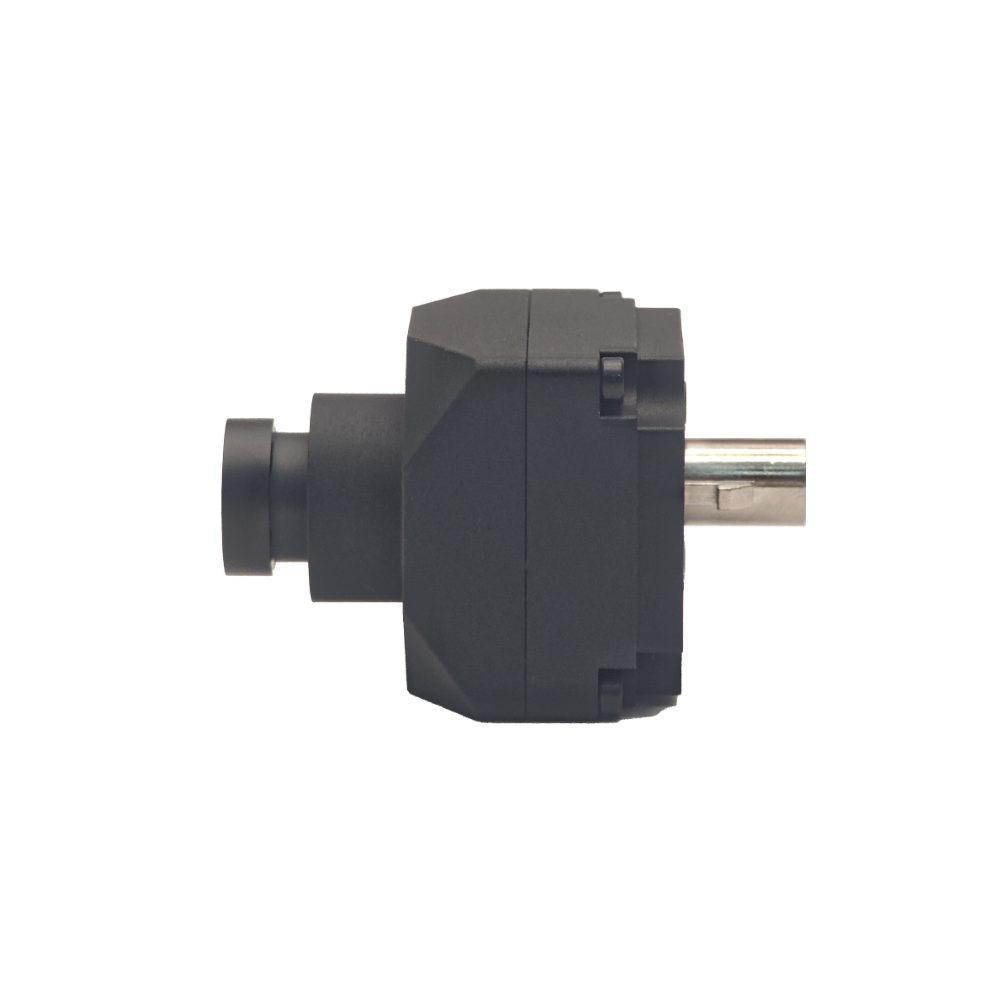

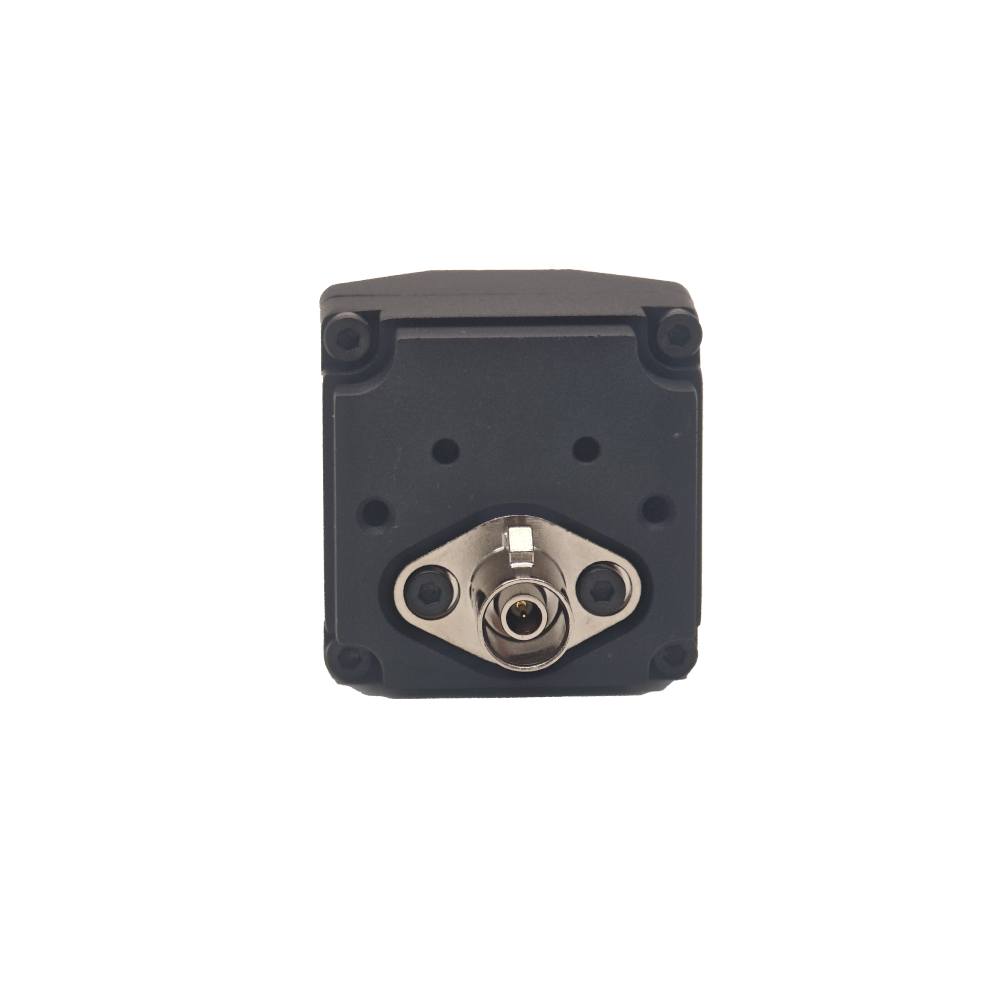

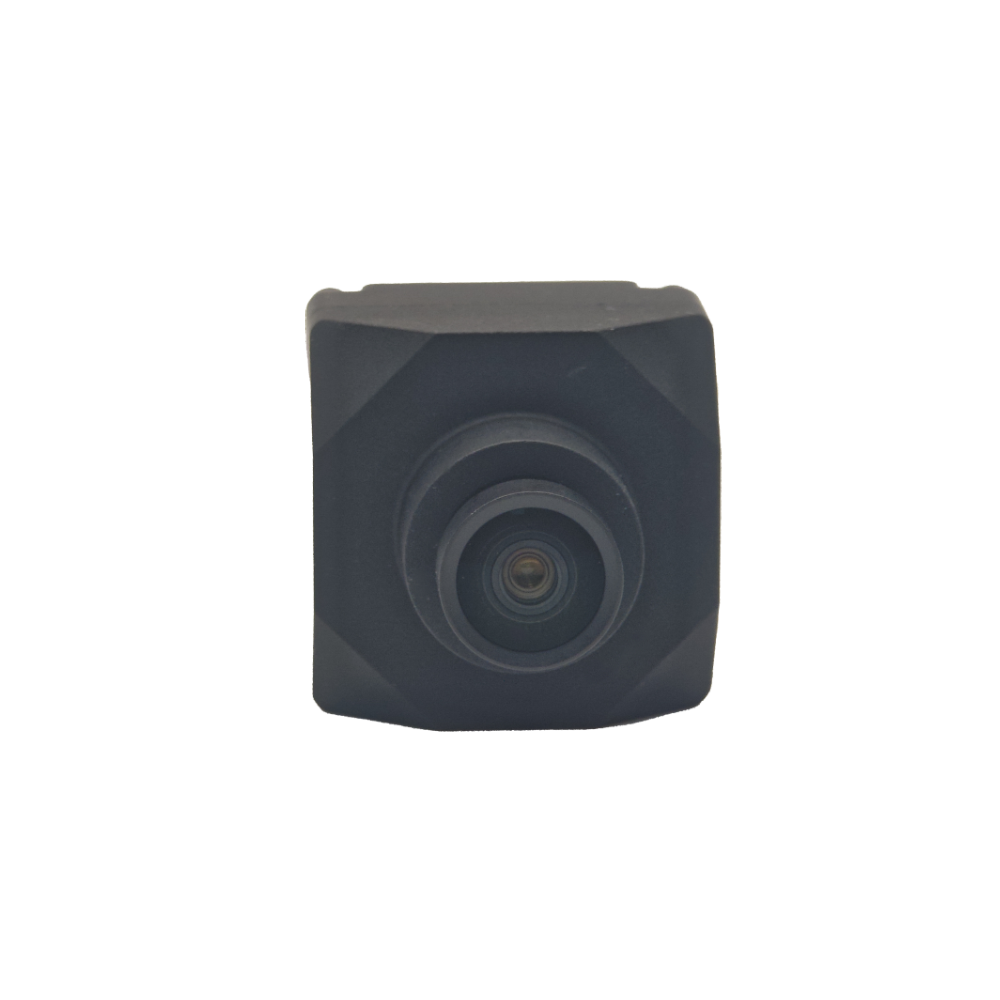

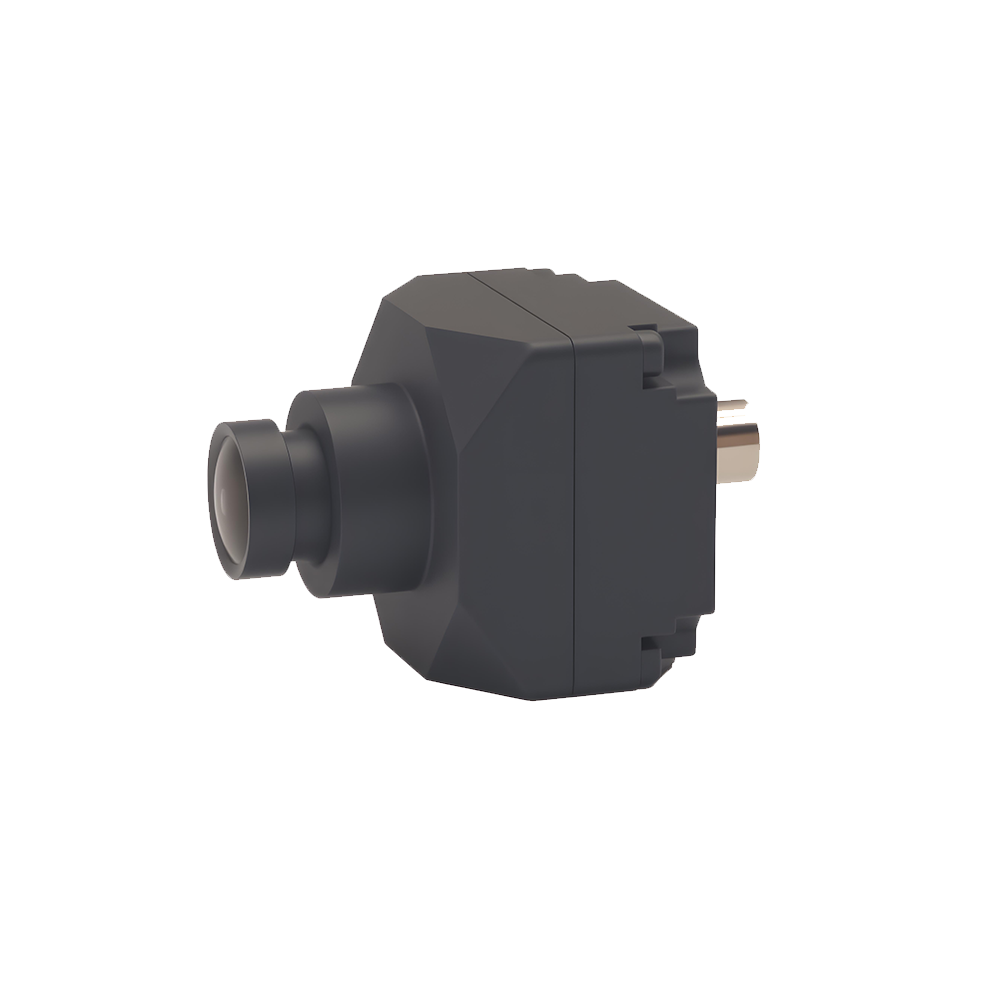

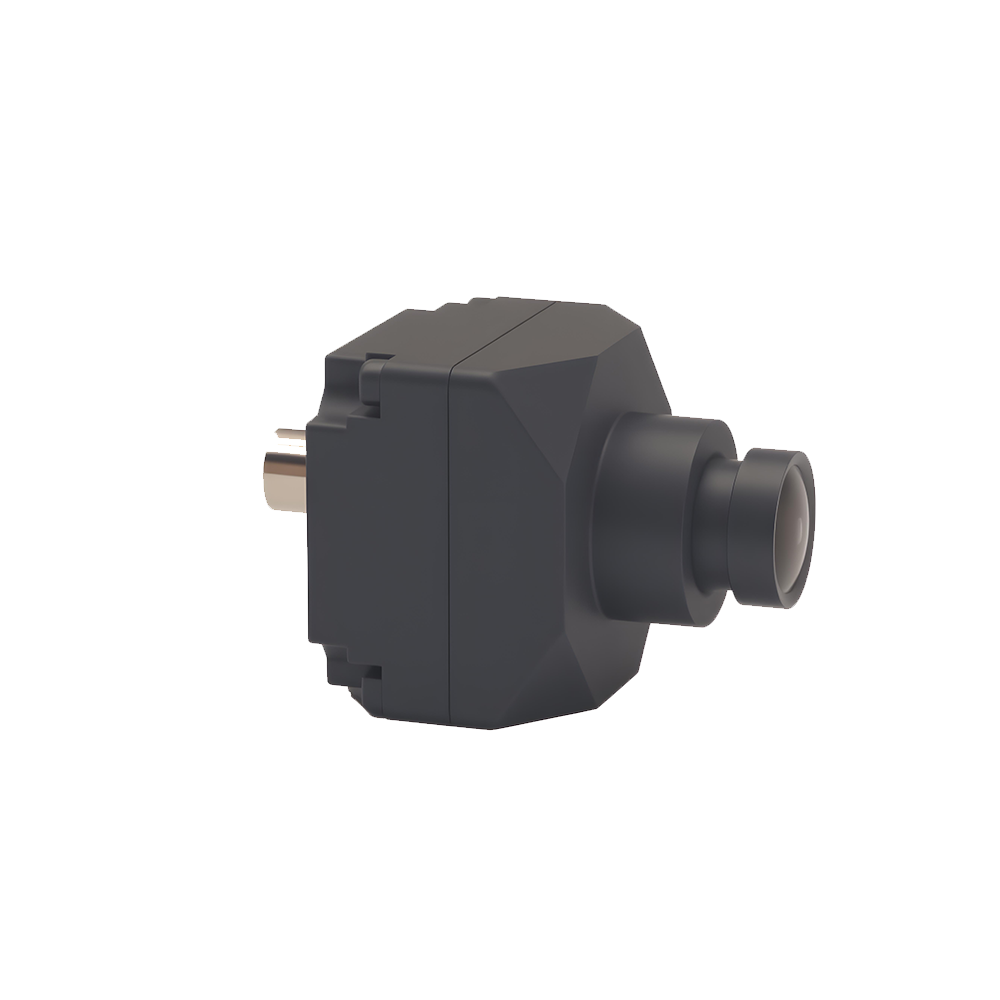

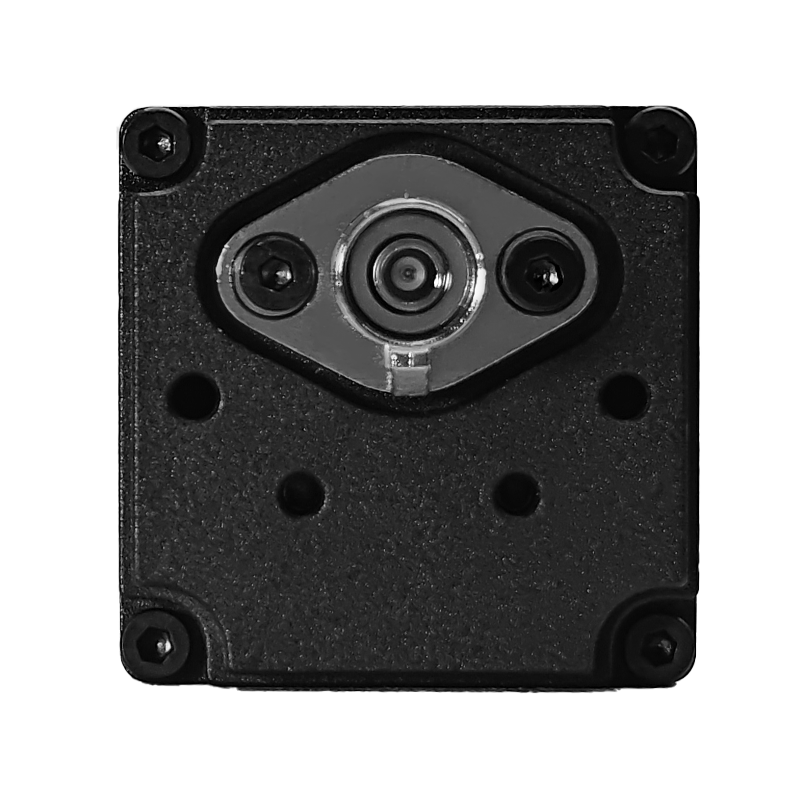

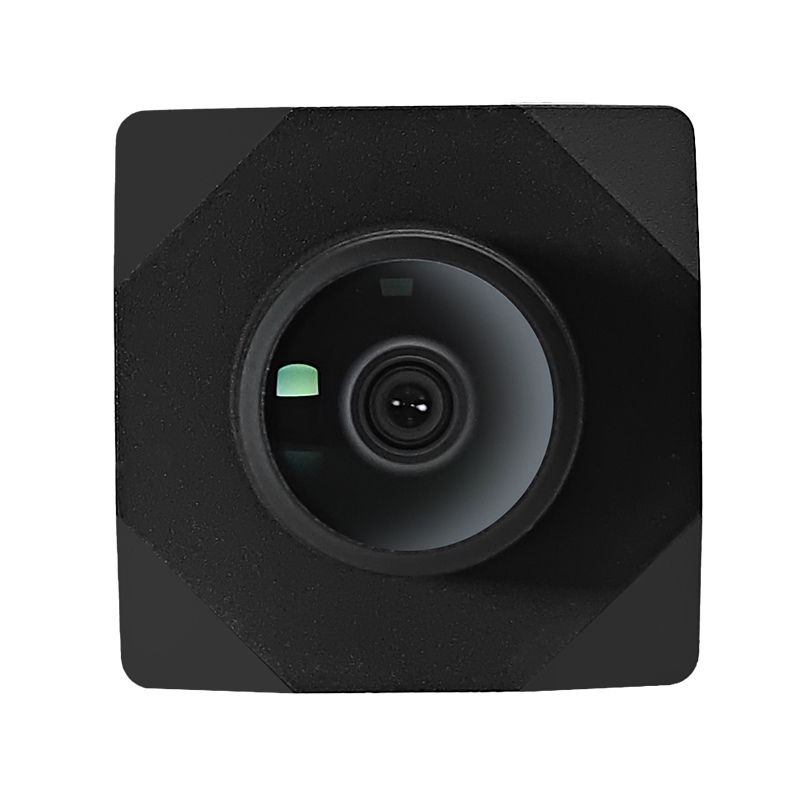

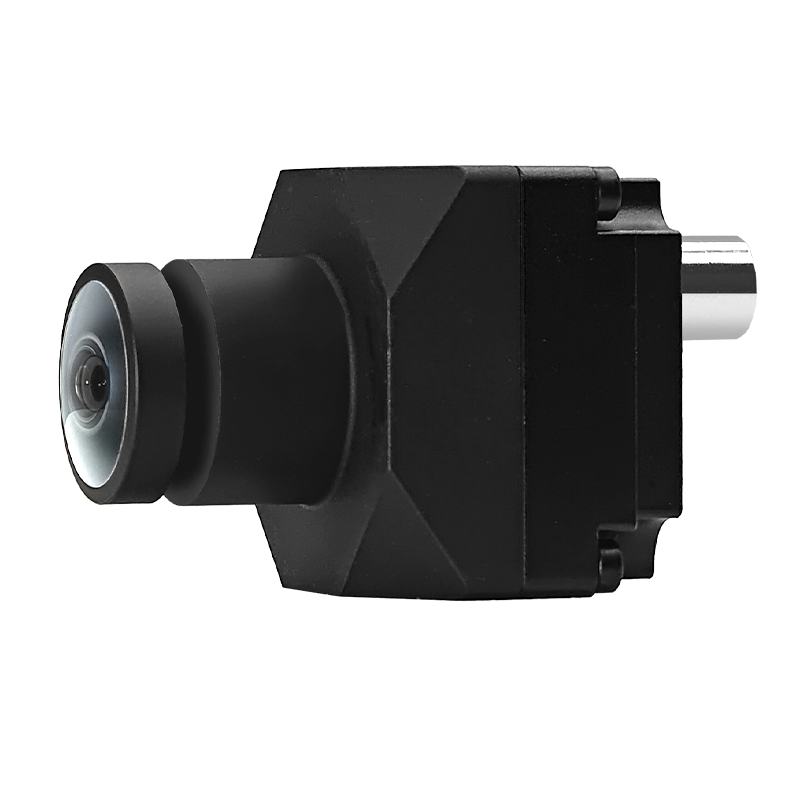

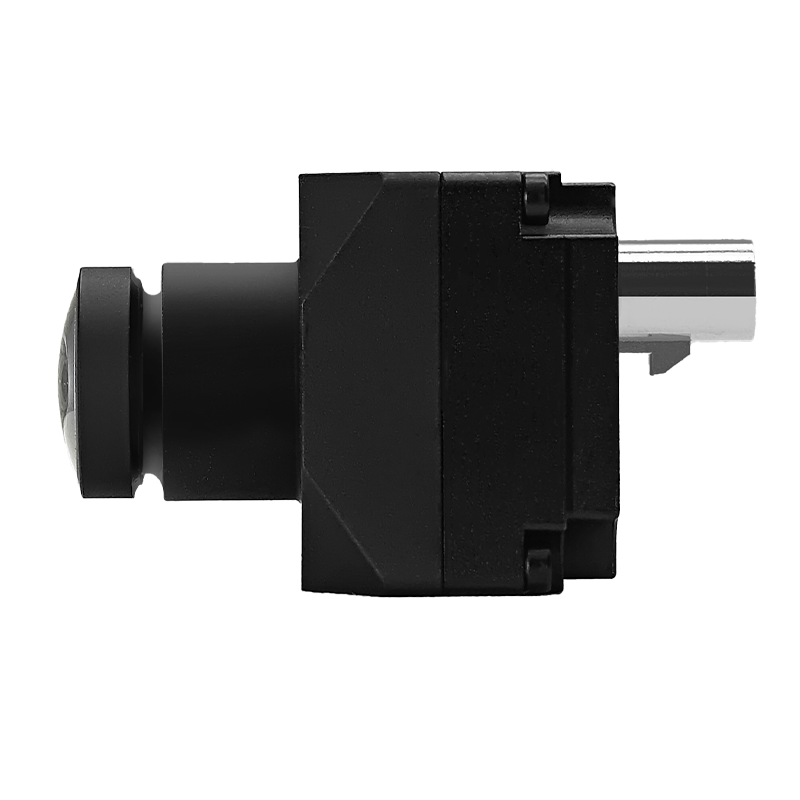

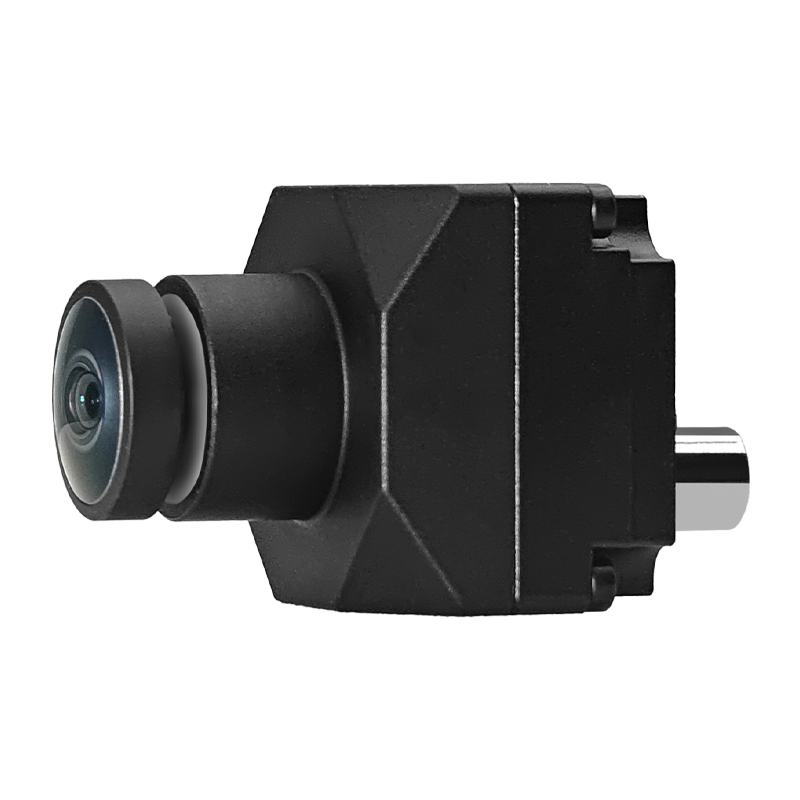

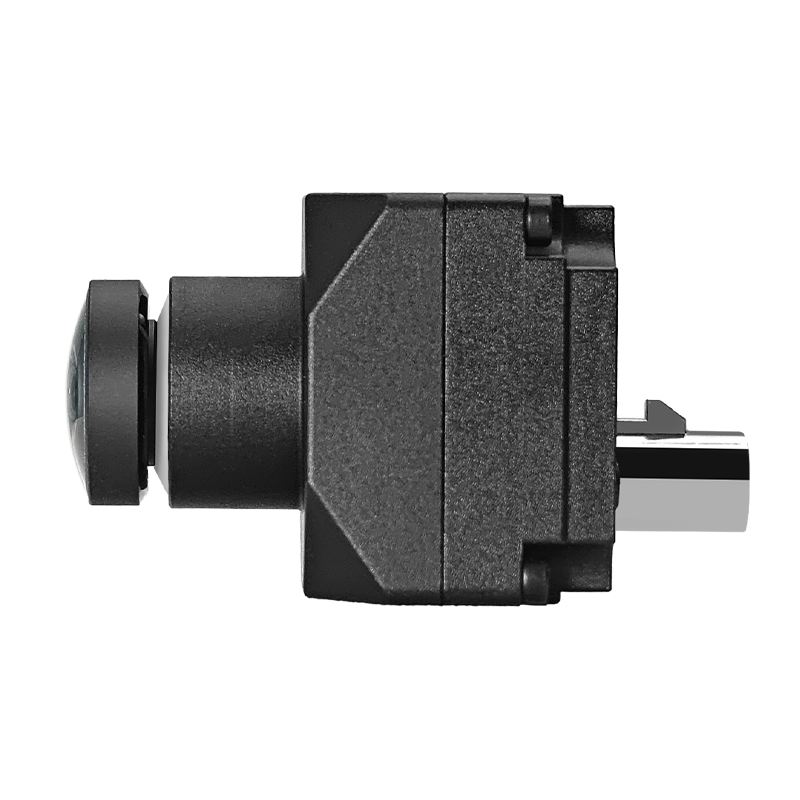

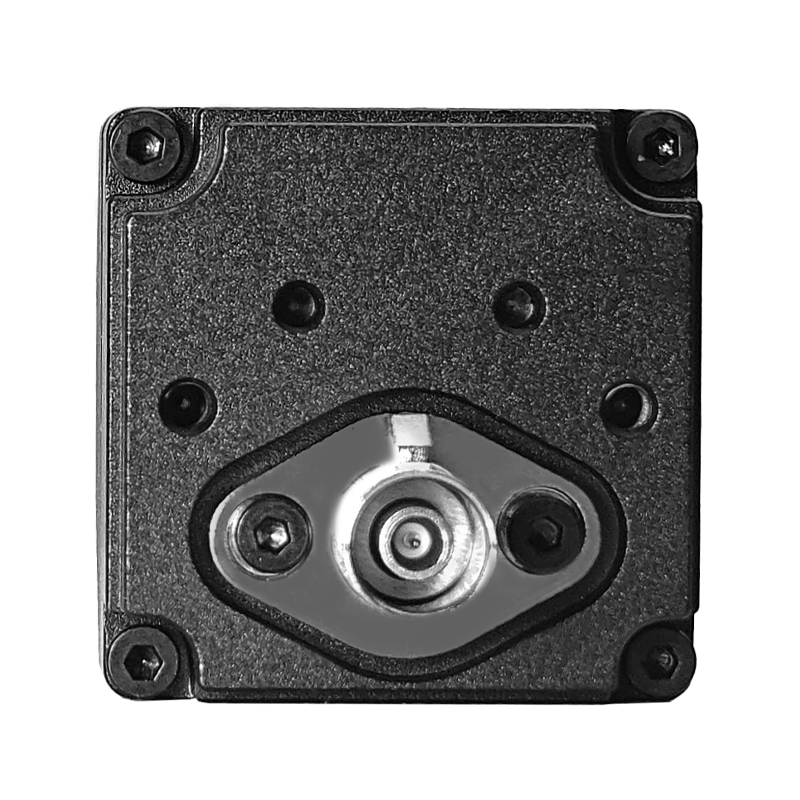

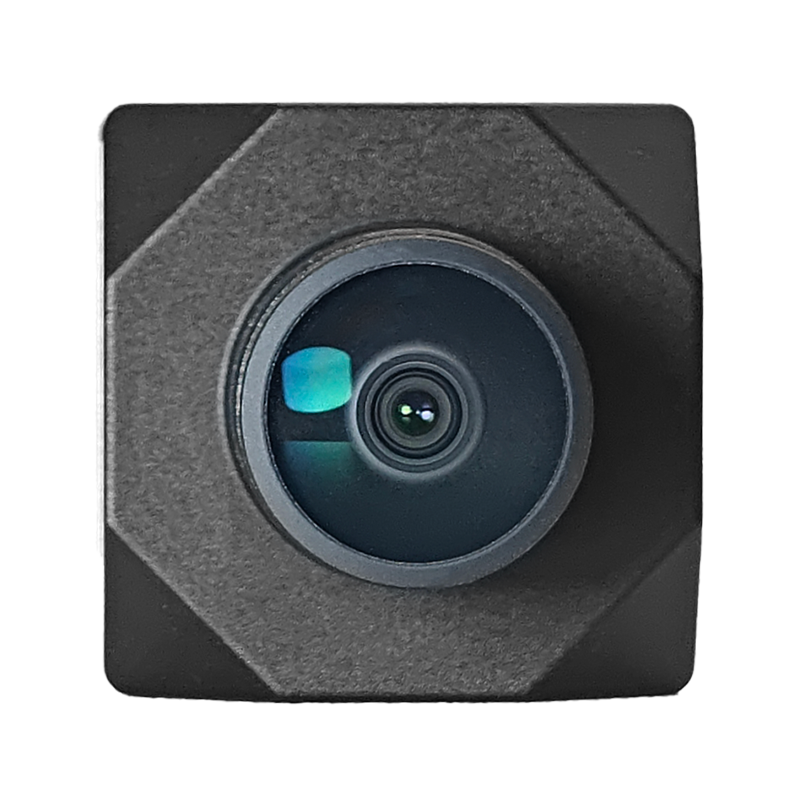

ALI361-YH 3M Automotive

Low-speed Autonomous Vehicle

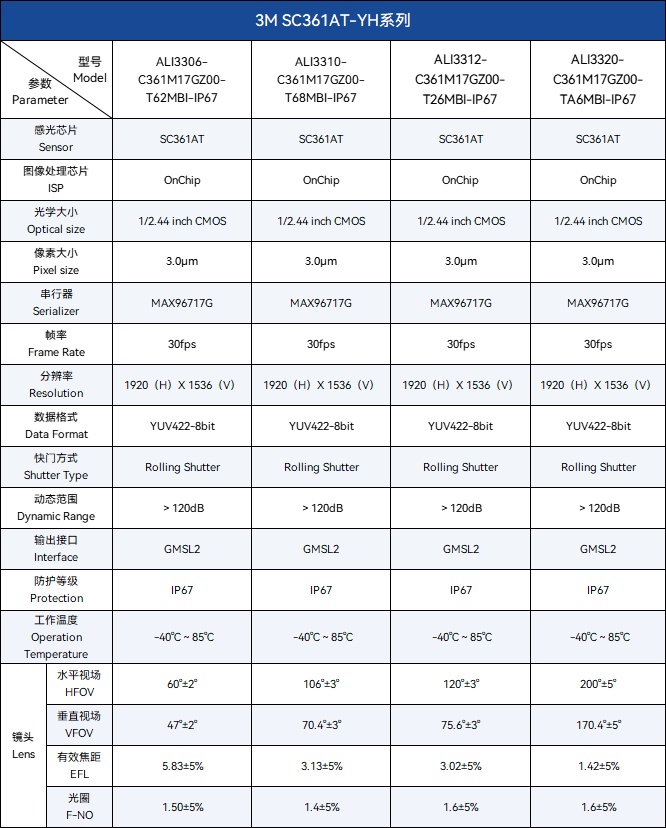

Model:ALI33xx-C361M17GZ00-T68MBI-IP67

Resolution: 1920×1536 (H×V)

Frame Rate: 30fps

Image Sensor:SC361AT

Serializer: MAXIM MAX96717G

Lens: HFOV 100°/120°/200°

Data Format: YUV422

Output Interface: GMSL2

Dynamic Range: 120dB

Shutter Mode: Rolling Shutter

Operating Temperature: -40°C ~ +85°C

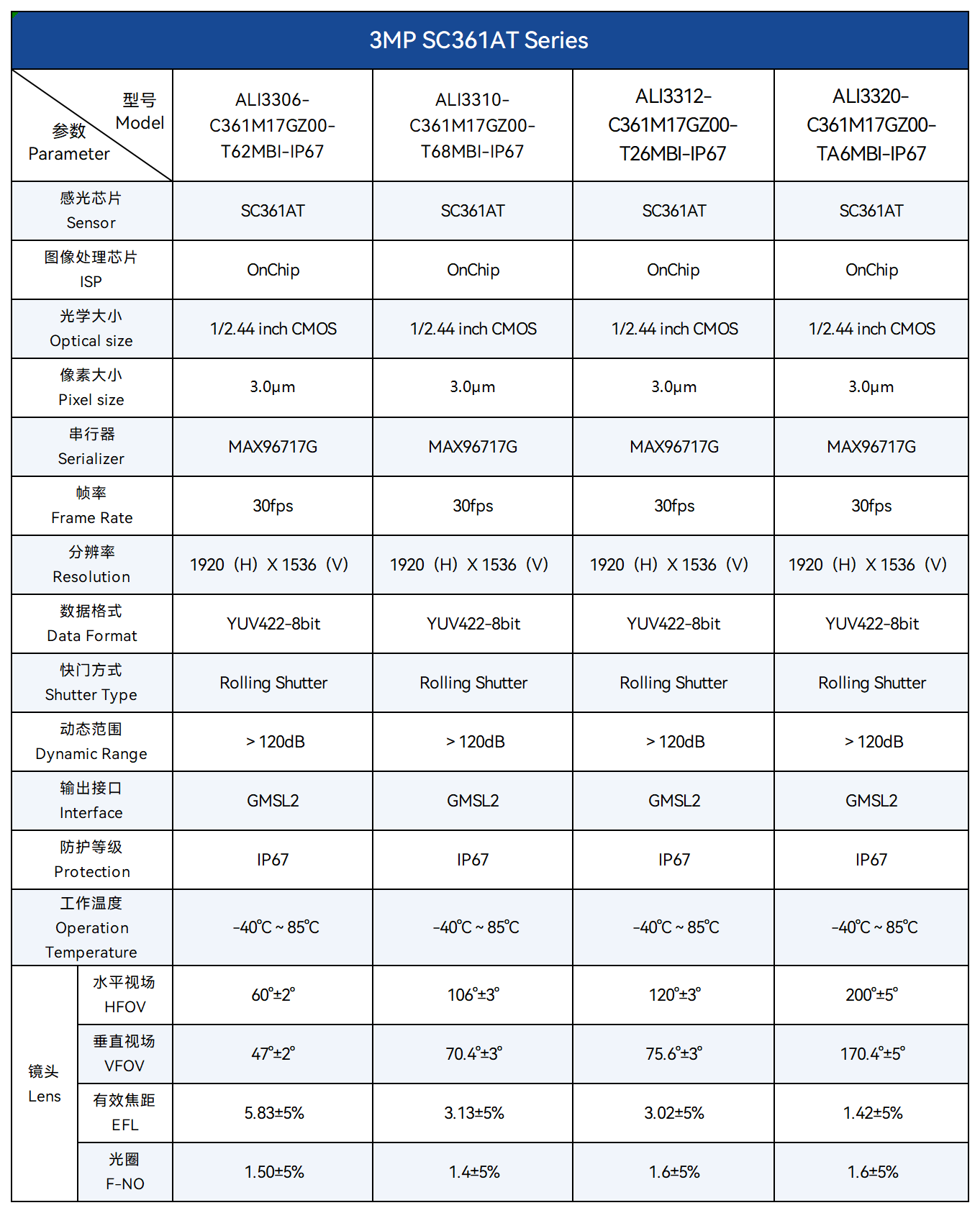

7.ALI361-YH 3M车载GMSL摄像头.png
